Lesson 30 - Post-processing and render graph
Post-processing Effects

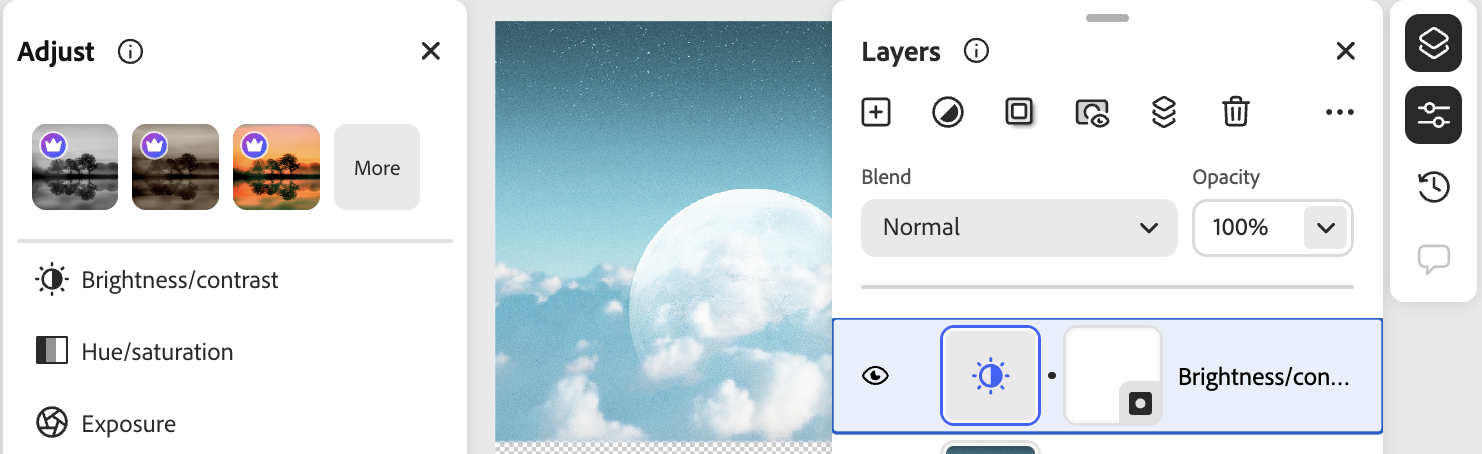

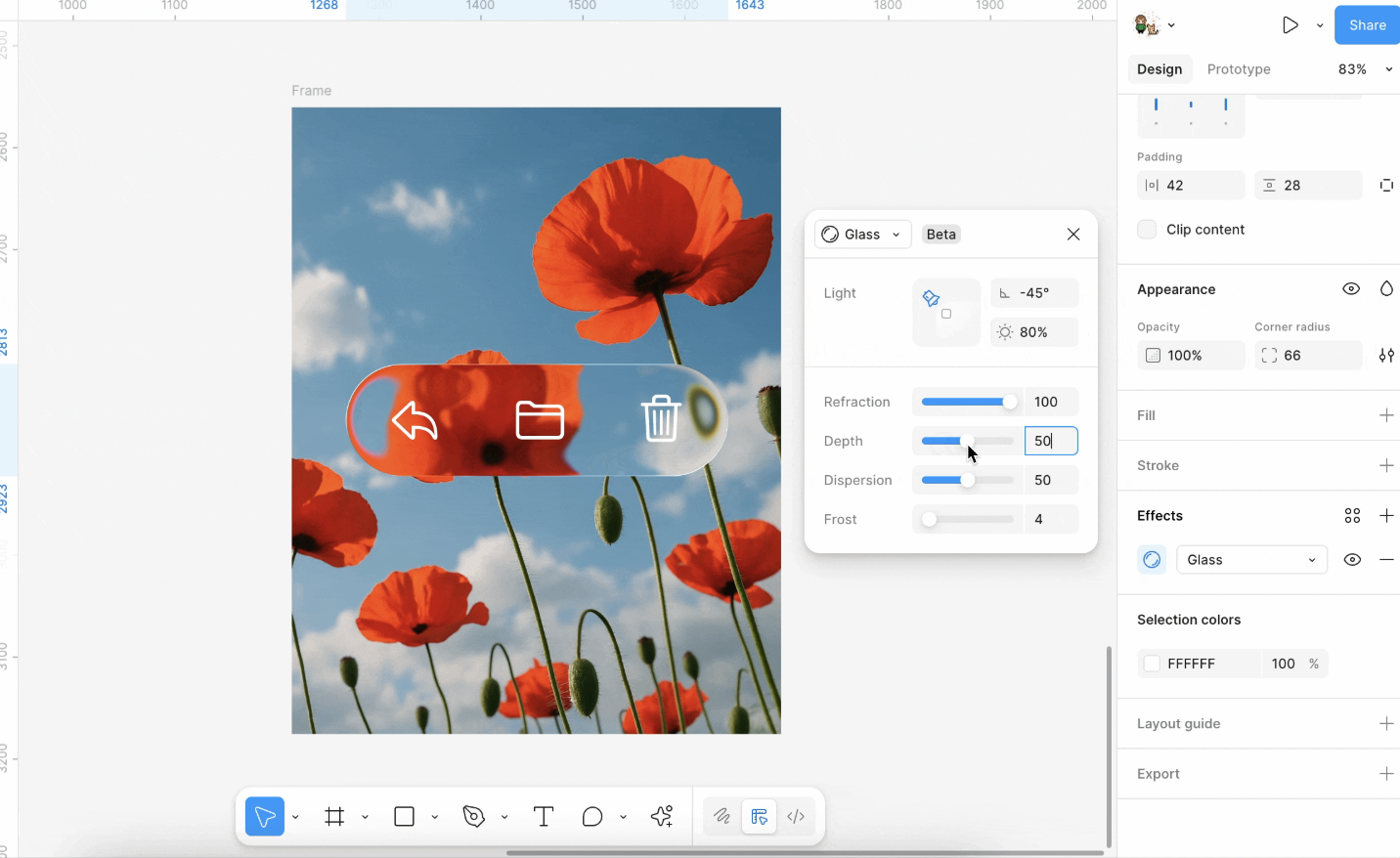

Based on Shaders, common image processing effects can be achieved, such as Gaussian blur, Perlin noise, Glitch, and of course, the recently popular "liquid glass":
For more effects, see:
In implementation, Pixi.js filters calculate the application area based on the object's bounding box, render the object onto a temporary render texture, and then apply shader effects to that texture.
RenderTarget
// src/filters/FilterSystem.ts
const quadGeometry = new Geometry({
attributes: {
aPosition: {
buffer: new Float32Array([0, 0, 1, 0, 1, 1, 0, 1]),
format: 'float32x2',
stride: 2 * 4,
offset: 0,
},
},
indexBuffer: new Uint32Array([0, 1, 2, 0, 2, 3]),
});Sample
Next, we need to sample the area where the target shape is located from the texture of the entire canvas:
void main() {
v_Uv = a_Position * (u_OutputFrame.zw / u_InputSize.xy) + u_OutputFrame.xy / u_InputSize.xy;
gl_Position = vec4((a_Position * 2.0 - 1.0) * u_OutputTexture.xy / u_OutputFrame.zw * u_OutputTexture.z, 0.0, 1.0);
}Big triangle
Here we can use a full-screen triangle, which reduces one vertex compared to a Quad, see: Optimizing Triangles for a Full-screen Pass
this.#bigTriangleVertexBuffer = this.device.createBuffer({
viewOrSize: new Float32Array([1, 3, -3, -1, 1, -1]),
usage: BufferUsage.VERTEX,
hint: BufferFrequencyHint.DYNAMIC,
});The vertex shader is very simple; it only needs to correctly map the v_Uv texture coordinates:
void main() {
v_Uv = 0.5 * (a_Position + 1.0);
gl_Position = vec4(a_Position, 0.0, 1.0);
#ifdef VIEWPORT_ORIGIN_TL
v_Uv.y = 1.0 - v_Uv.y;
#endif
}Brightness
We can use the CSS filter syntax, for example filter: brightness(0.4);
uniform sampler2D u_Texture;
in vec2 v_Uv;
layout(std140) uniform PostProcessingUniforms {
float u_Brightness;
};
out vec4 outputColor;
void main() {
outputColor = texture(SAMPLER_2D(u_Texture), v_Uv);
outputColor.rgb *= u_Brightness;
}Noise
Render graph

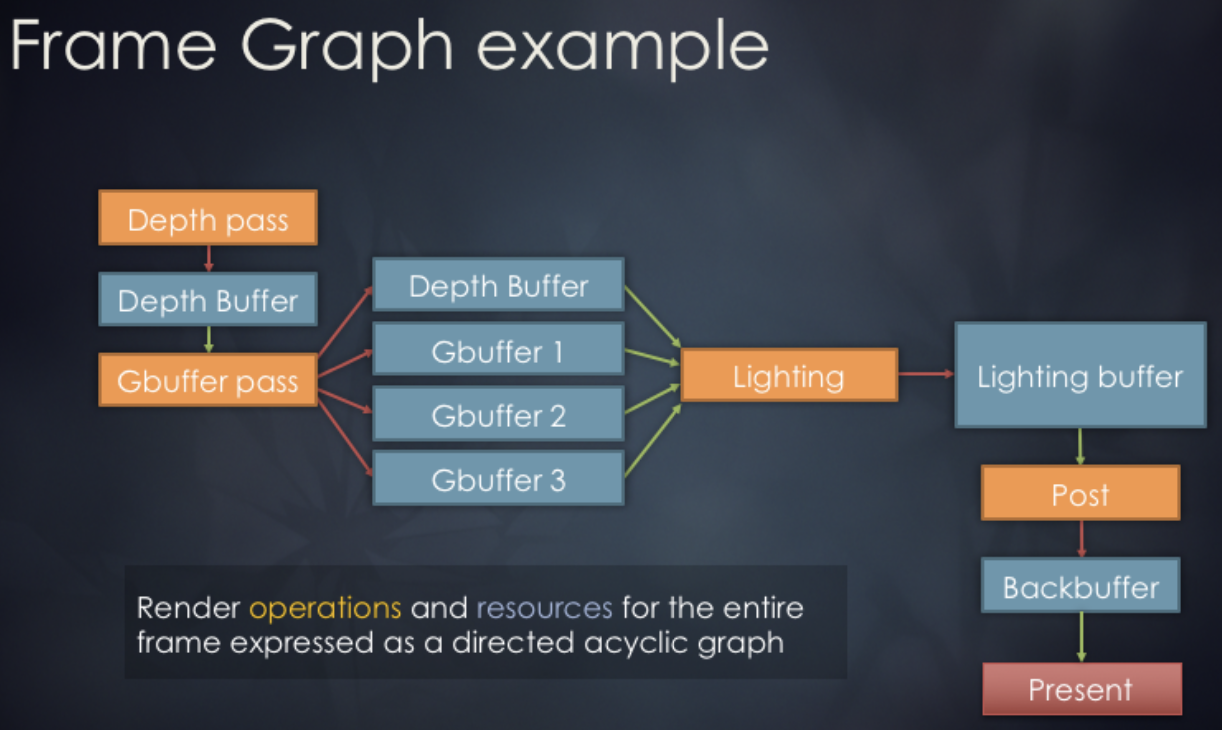

Render Graph（有时称为 FrameGraph）是一种将渲染过程抽象为有向无环图（DAG）的现代渲染架构。在这一架构下，每个渲染 Pass 以及它们使用的资源都被视为图节点与边，通过图结构自动管理资源状态转换、同步和生命周期。
// @see https://docs.rs/bevy/latest/bevy/render/render_graph/struct.RenderGraph.html
let mut graph = RenderGraph::default();
graph.add_node(Labels::A, MyNode);
graph.add_node(Labels::B, MyNode);
graph.add_node_edge(Labels::B, Labels::A);Design concept
We reference the render graph implementation from noclip, which employs a three-phase design:
Graph Building Phase: Declaratively defines the rendering pipeline. We'll see how it's used in the next subsection.
Scheduling Phase: Automatically allocates and reuses resources. This can be further broken down into:
- Statistics Phase: Traverse all passes to count references for each RenderTarget and ResolveTexture
- Allocation Phase: Allocate resources on demand. Retrieve from the object pool or create on first use. Reuse resources with identical specifications. Return to the object pool when reference count reaches zero.
- Release Phase: Return to the object pool when reference count reaches zero.
Execution Phase: Execute rendering passes sequentially.
The data structure for the render graph is as follows. It stores a declarative description of the render graph, containing no actual resources. It only records the ID relationships between Passes and Render Targets.
class GraphImpl {
renderTargetDescriptions: Readonly<RGRenderTargetDescription>[] = [];
resolveTextureRenderTargetIDs: number[] = [];
passes: RenderGraphPass[] = [];
}Usage
Each time a repaint is required, a new RenderGraphBuilder is created to construct the DAG. Currently, this simple DAG includes a main rendering pass that outputs results to a ColorRT and DepthRT. Subsequently, we will add additional passes using pushPass. The ColorRT can be consumed as input, and ultimately this ColorRT will be rendered to the screen. The main rendering logic is written in the callback function of pass.exec, which receives a RenderPass object. For details, see: Lesson 2.
const builder = renderGraph.newGraphBuilder();
builder.pushPass((pass) => {
pass.setDebugName('Main Render Pass');
pass.attachRenderTargetID(RGAttachmentSlot.Color0, mainColorTargetID);
pass.attachRenderTargetID(RGAttachmentSlot.DepthStencil, mainDepthTargetID);
pass.exec((renderPass) => {
// Render grid
// Render shapes in current scene
});
});
builder.resolveRenderTargetToExternalTexture(
mainColorTargetID,
onscreenTexture,
);
renderGraph.execute();FXAA
We now create a separate FXAA pass outside the main render pass for fast anti-aliasing. It detects edge directions, performs multi-sample blending along edge directions, and applies brightness range validation to prevent excessive blurring. Compared to MSAA, it is lighter and better suited for real-time rendering.
This method converts RGB to grayscale using NTSC weights 0.299R + 0.587G + 0.114B for edge detection.
float MonochromeNTSC(vec3 t_Color) {
// NTSC primaries.
return dot(t_Color.rgb, vec3(0.299, 0.587, 0.114));
}Returning to the declarative syntax of the render graph. First, obtain the ColorRT from the previous step.
builder.pushPass((pass) => {
pass.setDebugName('FXAA');
pass.attachRenderTargetID(RGAttachmentSlot.Color0, mainColorTargetID);
const mainColorResolveTextureID =
builder.resolveRenderTarget(mainColorTargetID);
pass.attachResolveTexture(mainColorResolveTextureID);
pass.exec((passRenderer, scope) => {
postProcessingRenderer.render(
passRenderer,
scope.getResolveTextureForID(mainColorResolveTextureID),
);
});
});We apply 3 post processing effects for the whole canvas:
api.setAppState({
filter: 'fxaa() brightness(0.8) noise(0.1)',
});
